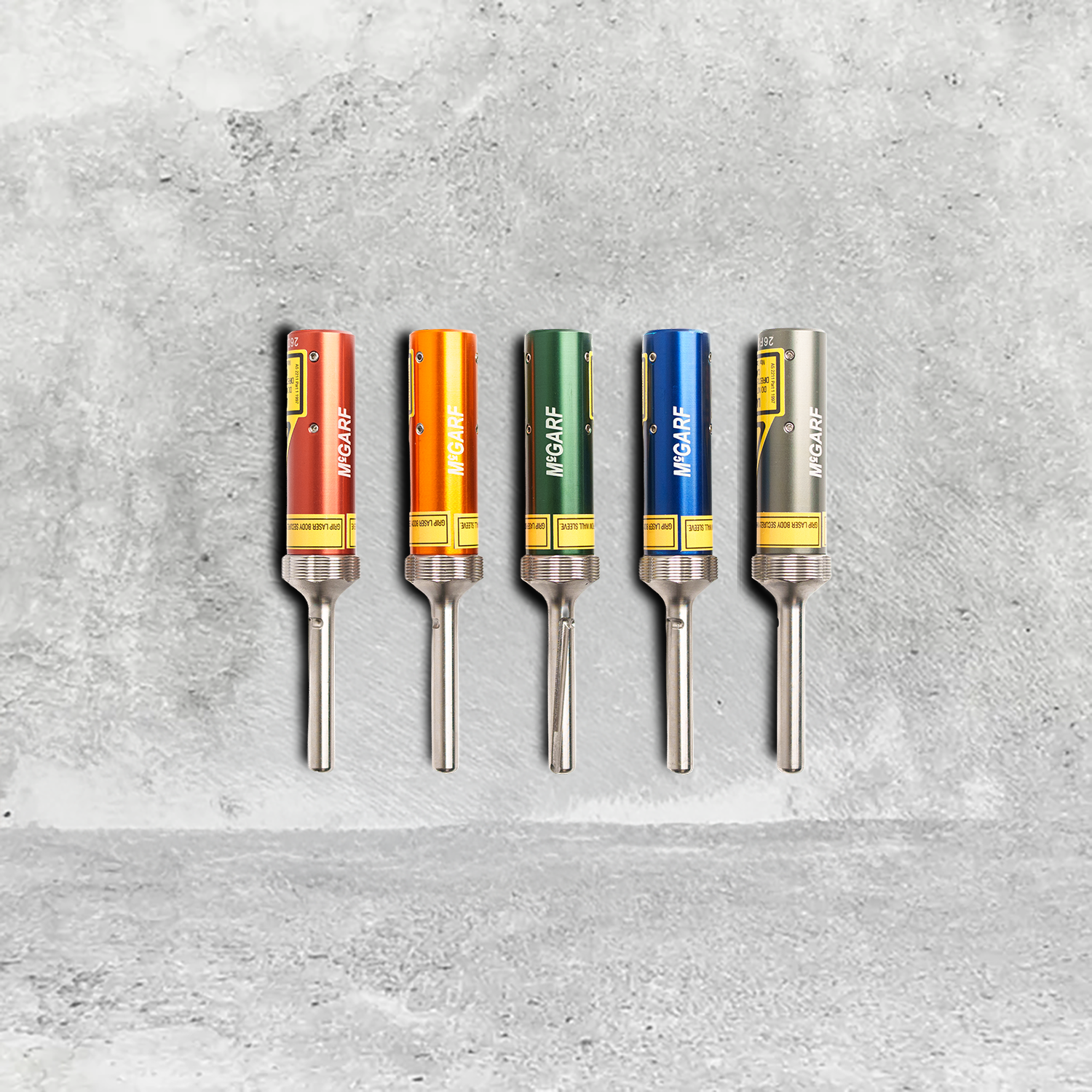

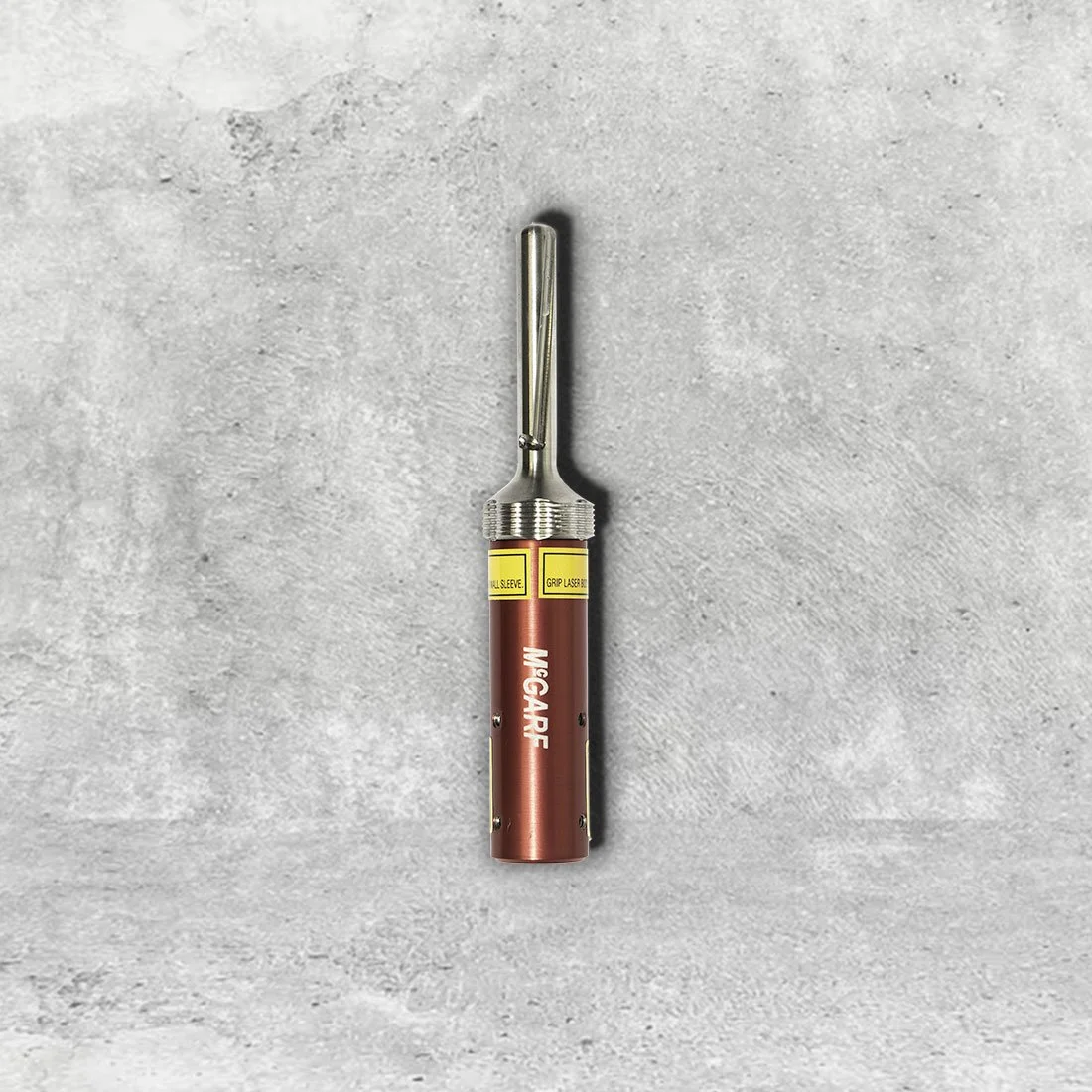

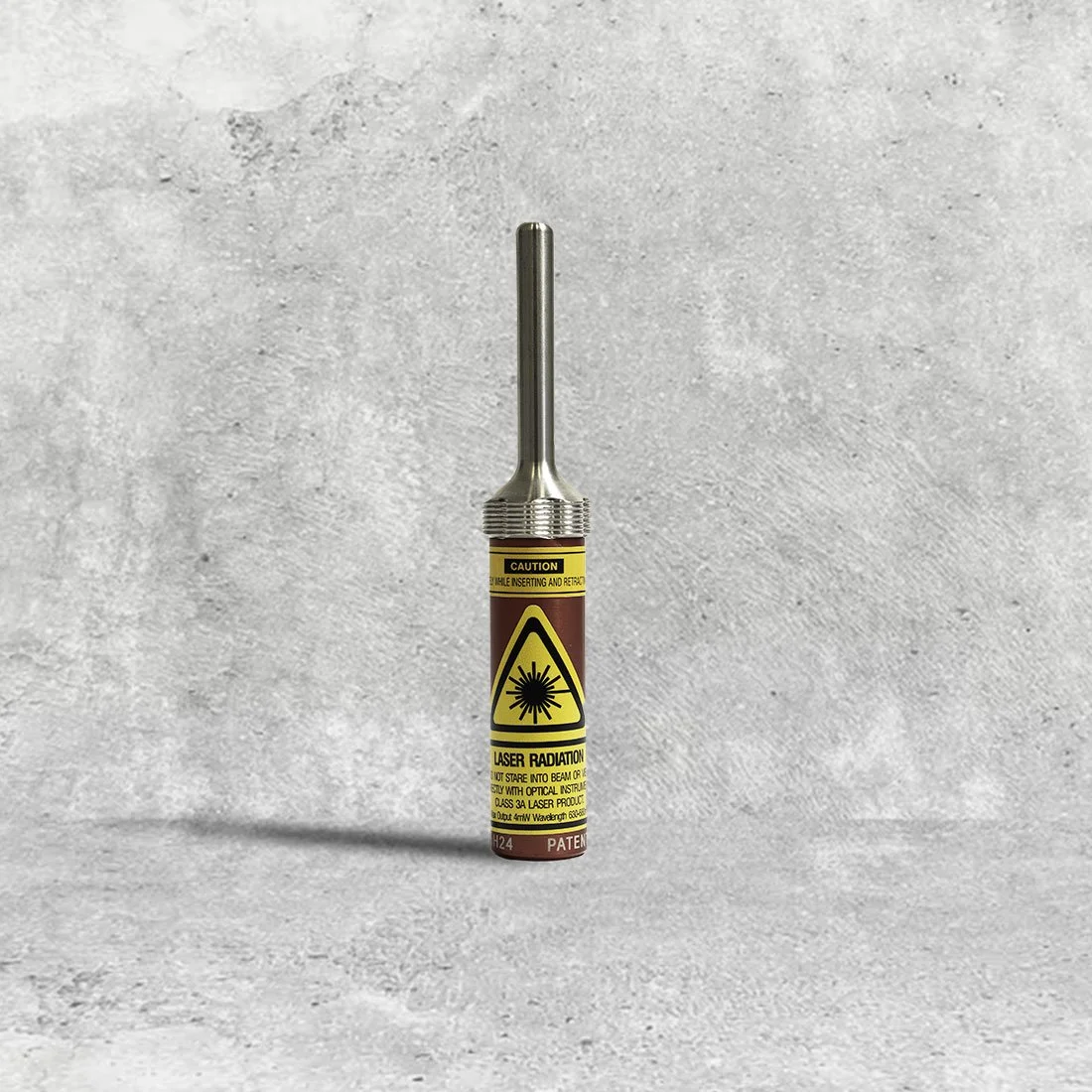

McGarf Laser
-
Class 3A laser Product:
Wavelength: 645 - 665nm
Power Output: 3mW ± 1mW
Spot Size at 20m: 10mm ± 2mm
Divergence: 0.6mrad
Collimating lens: 10mm aspherical plastic -
Size 125mm long (o/a) x 20mm diameter.
Anodised marine grade aluminium housing and stainless steel spigot.
Class 3A LASER.
Self on/off switching.
Dust & water resistant.
Small & compact.
Battery and belt pouch included.
McGarf Grade Line Laser
-
With the McGARF Grade Line Laser, a miner or a supervisor can mark the grade lines on the side walls.
The McGARF Grade Line Laser will also give you a levelled horizontal line at the same height as the laser dot on the front wall.
-
Install the the McGARF Alignment Laser into the sleeve and this will send a laser dot, on line and grade, to the front face.
Place the McGARF Grade Line Laser on to the McGARF Alignment Laser, level it using the spirit bubble and lock it in place.
Turn on the grade line laser.
The laser line will either be above or below the dot on the front wall.
Using the adjustment screw, line up the laser line with the dot.
Once this has been done, you now have a level line across the front face and a grade line down both side walls.
Using this equipment, marking the grade lines can now be done by anyone.
Accessory Pack
-
Includes, Drill Bit, grout and 3 x Wall Sleeves
McGarf Wall Sleeve
-
Size 90mm long x 11mm diameter.
Brass housing.
Comes with a dust and water resistant cap with twine for securing to the wall.
Available individually, 25 and 50 packs.

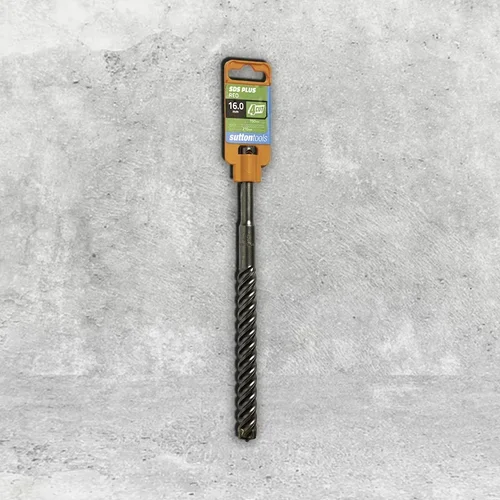

Universal Drill Bit
-
16mm dia 150/210 masonry.
(14mm dia on request)
Grout
-
Recommend Epoxy Resin Putty.
Supplied as single tubes.
McGarf Belt Pouch
-
Manufactured in leather and suitable for use with a miner's belt.
Grade Line Laser Pouch
-
Manufactured in leather and suitable for use with a miner's belt.
Gradeline Sturdy Case
-
A rugged, solid case engineered to protect your Gradeline alignment tools. Outfitted with precision laser-cut foam inserts, it ensures your equipment remains secure and protected at all times—ideal for transport and harsh worksite conditions.
Laser Sturdy Case
-
A rugged, solid case designed to provide superior protection for your alignment laser. Fitted with precision laser-cut foam inserts, it ensures your equipment is securely cushioned and protected at all times—perfect for transport and tough site conditions.
Mark-Up Spray Paint
-
High-visibility spray marking paint available in a wide range of colours for all surfaces and site conditions. Fast-drying, long-lasting, and designed for precision application.

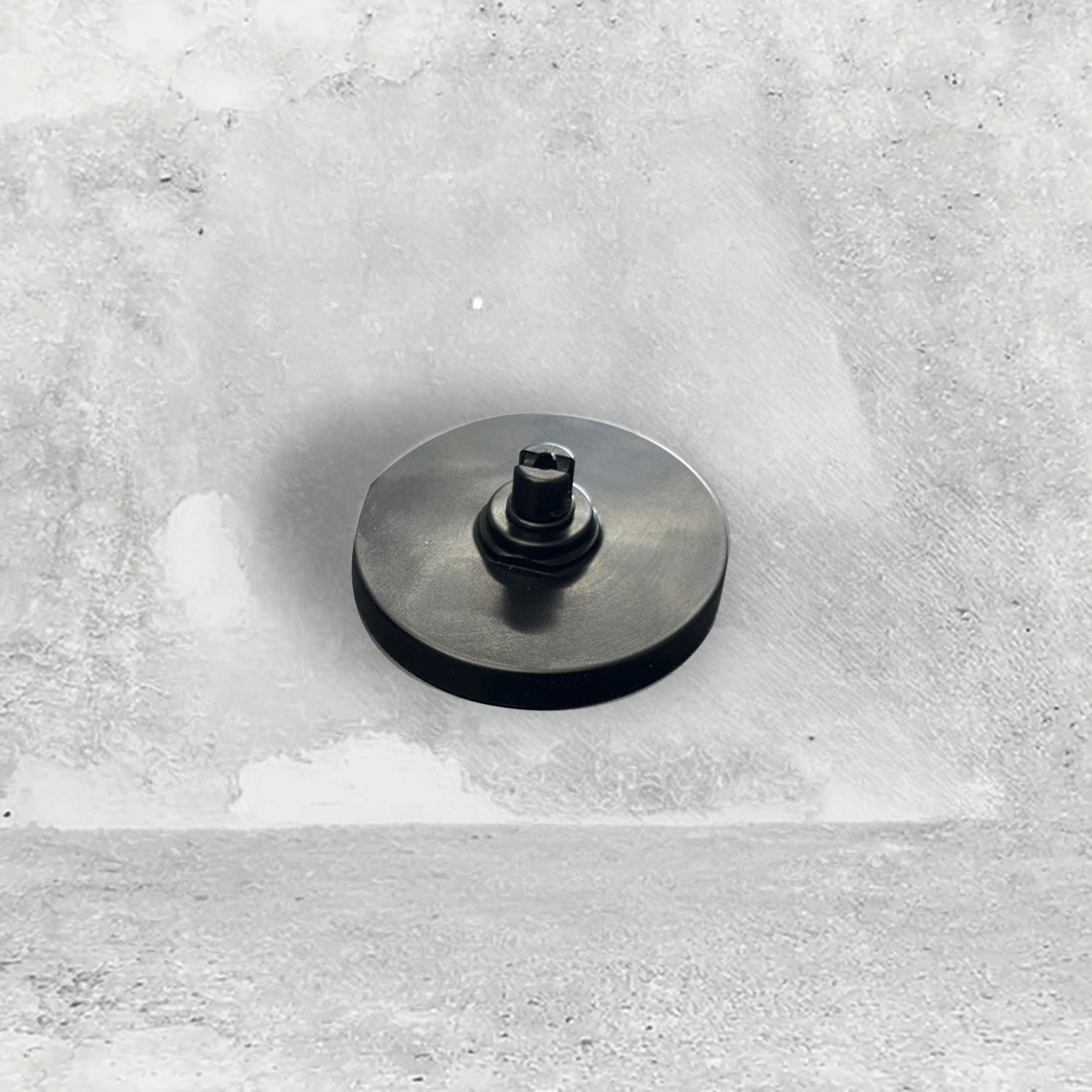

PR Plug
-
A durable, reflective, and protective plug designed to replace traditional caps with strings. Larger in diameter for improved coverage, the PR Plug features a high-visibility reflective surface for quick and easy location in all conditions—ideal for demanding industrial environments.

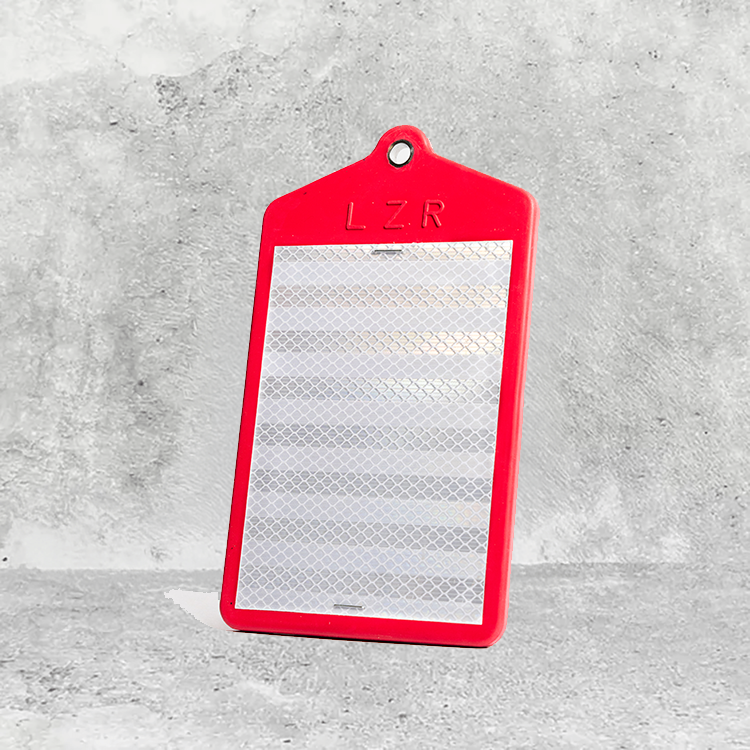

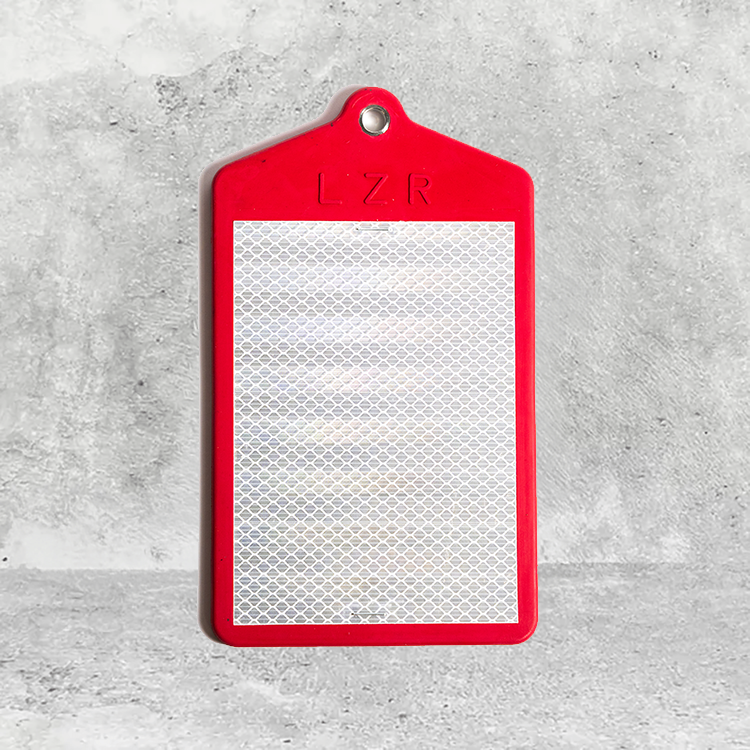

LZR Tag
-
Protects wall sleeves from fly rock and machine impacts. Its reflective 3M surface makes sleeves easier to spot underground, reducing lost time and improving markup efficiency. By preventing damage to laser installs, the LZR TAG helps avoid jumbo downtime, relocations, and lost drilling metres.
-
